QC12Y 4*3200 shearing machine from China manufacturer - Maanshan Durmapress Machinery Technology Co., LTD

Price:	7600.0 USD
Payment Terms:	T/T,L/C,WU,Paypal
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QC12Y-4x3200

Production Capacity: 30 sets per month for the s...

Delivery Date: 4weeks for sheet metal cutt...

Raw Material: Sheet / Plate Rolling

Extra Services: Cut To Length

Certification: CE

Brand Name: Durmapress

Cutting thickness: 4mm

Name: Hydraulic shearing machine

Cutting material: Metal sheet , stainless ste...

Weight: 6Ton

Cutting stainless steel thickness: 2mm

Means of Transport: Ocean,Land

Packing: Inner with waterproof film,...

Power: Hydraulic

Machine Type: Press Brake

Automation: Automatic

Material / Metal Processed: Carbon Steel

cutting width: 3200mm

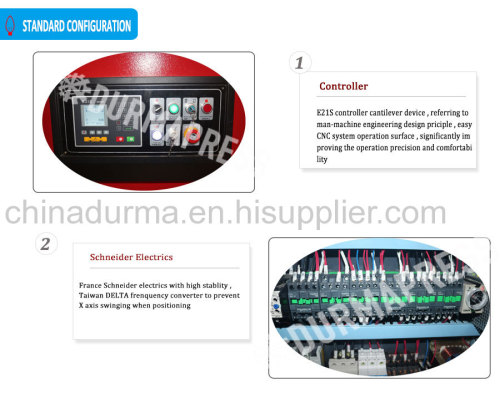

control system: E21s

Voltage: 380V also can according to ...

Rate power: 7.5KW

Warranty: 2 YEARS

4mm metal sheet shearing machine
3200mm metal sheet cutting machine
swing beam shearing machine
QC12Y swing beam shearing machine
3m shearing

Product Description

Hydraulic shearing machine QC12Y 4*3200
Model	QC12Y
Brand	KLT
Certificate	CE , ISO9001:2008
Packing	Steel Tray Frame
MOQ	1 set
Warranty	2 years
Payment	L/C,D/A,D/P,T/T,Western Union,Money Gram
Performance and Characteristic	1. This machine belongs to second generation hydraulic plate shearing machine. 2. There is a backgauge device in machine. It adopts NC system to drive motor controlling to achieve fix position automatically. 3. It adopts anvanced hydraulic intergrated valve block to improve the realiableness and easy repairness of system. 4. The cutting angle will not change through the hydraulic oil cylinder. 5. Accumulator has stable and quick return stroke 6. All four knives of rectangle knife plates can be uesd for long time. 7. The space of knife plates can be adjusted by NC system correctly,quickly and conveniently. 8. Top blade adapter adopts tilt inward structure to blank. It also will improve the cutting precision of plate. 9. Material supporting rolling ball will decrease the damage of plate and friction resistance. 10. The cutting angel can be adjusted to decrease the deformation of plate. 11. The rolling guide is supported by three points to inprove the cutting precision.

SPECIFICATIONS FOR Hydraulic shearing machine QC12Y 4*3200
No	Name	Specification	Unit
1	Max thickness of plate to be cut	4	mm
2	Max width of plate to be cut	3200	mm
3	Throat depth	100	mm
4	Back gauge stroke	600	mm
5	Cutting angle	0.5~1°30'
6	Number of stroke	≥10	times
7	Main motor power	7.5	kw
8	Dimensions	383017501980	mm
9	Weight	4800	kg

Hydraulic metal sheet shearing machine QC12Y 4*3200

Packing & Delivery

Packing type: Steel tray case
Delivery: 15-40 days after receiving deposit

Hydraulic metal sheet shearing machine QC12Y 4*3200

Competitive Advantage:

1. CE, ISO Certification.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients' requirements.
4. Independent electrical control with PLC and TPC.
5. Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that the hydraulic system is not leaking.
6. The pressure, stroke, and time of pressure maintaining can be regulated.
7. High quality and performance with good price.
8. Safe and stable operation.
9. Support 7*24 remote service or locate service.
10. Supply maintenance service all life.

Hydraulic metal sheet shearing machine QC12Y 4*3200

FAQ

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.

Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.

Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.

Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
